Automatic Flow Control Valve

A flow control valve regulates the flow or pressure of a fluid. Flow Control valves normally respond to signals generated by independent devices such as flow meters or temperature gauges. Control valves are normally fitted with actuators and positioners. Pneumatically-actuated globe valves are widely used for control purposes in many industries, although quarter-turn types such as (modified) ball and butterfly valves are also used.

Control valves can also work with hydraulic actuators (also known as hydraulic pilots). These types of valves are also known as Automatic Control Valves. The hydraulic actuators will respond to changes of pressure or flow and will open/close the valve.

Automatic Control Valves do not require an external power source, meaning that the fluid pressure is enough for opening and closing the valve.

Click here for a control valve cross reference guide.

Click here for the Automatic Control Valve Pricelist.

Control valves

...regulate the flow or pressure of a fluid. They normally respond to signals generated by independent devices such as flow meters or temperature gauges. They are fitted with actuators and positioners. Pneumatically-actuated globe valves are widely used for control purposes in many industries, although quarter-turn types such as (modified) ball and butterfly valves are also used.

They regulate the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. They are technically pipe fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure.

Pressure Control

Water Control valves can also work with hydraulic actuators (also known as hydraulic pilots). The hydraulic actuators will respond to changes of pressure or water flow and will open/close the valve. Flomatic® also carries actuated solenoid valves.

Flow Control

Idle Air Control

These are used in a variety of contexts, including industrial, military, commercial, residential, and transportation. The industries in which the majority of valves are used are oil and gas, power generation, mining, water reticulation, sewerage and chemical manufacturing.

Plumbing valves, such as taps for hot and cold tap water are the most noticeable types of valves. Other valves encountered on a daily basis include gas control on cookers, small valves fitted to washing machines and dishwashers, and safety devices fitted to hot water systems.

They may be operated manually, either by a hand wheel, lever or pedal. Valves may also be automatic, driven by changes in pressure, temperature, or flow. These changes may act upon a diaphragm or a piston which in turn activates the valve. Examples of this type of valve found commonly are safety valves fitted to hot water systems or boilers.

More complex control systems using valves requiring automatic control based on an external input (i.e., regulating flow through a pipe to a changing set point) require an actuator. An actuator will stroke the valve depending on its input and set-up, allowing the valve to be positioned accurately, and allowing control over a variety of requirements.

Click here for the control valve information request form

Automatic control valves include:

C000 - Main Control Valve body

C100 - Pressure Reducing Valve

C200 - Altitude valve

C300 - Backpressure Sustaining Valve

C400 - Pressure Relief Valve

C500 - Surge Arrestor/Anticipating Valve

C600 - Pump Control Valve

C700 - Float/Level Control Valve

C800 - Solenoid Control Valve

C900 - Flow Control Valve, Maximum Rate Control

C1000 - Hydraulic Check Valve

Cycle GardŽ

Accessories

Automatic Control Valves

Main Body Control Valves

  • BASIC VALVE- Ductile Iron fusion epoxy coated. Unleaded bronze trim (stainless optional), NITRILE (Buna-N) seals and diaphragm, stainless steel stem and fasteners. Pressure Max: 250 PSI-ANSI 150, 400 PSI-ANSI 300 14" - 36" CONSULT FACTORY).
    Manufactured by: Flomatic Corporation
    Models: C000, CF000

Pressure Reducing Valves

  • Same construction as Model C000/CF000. Reduces high upstream pressure to lower downstream pressure. CONSULT FACTORY for control valve price list for specific options. Size(s): 1 1/2 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C101, CF101
  • PRESSURE REDUCING WITH LOW FLOW BYPASS Size(s): 1 1/2 to 20 in.
    Manufactured by: Flomatic Corporation
    Models: C101B, CF101B
  • Pressure Reducing (Dual Pilot) Size(s): 1 1/2 to 12 in. (40 to 300 mm)
    Manufactured by: Flomatic Corporation
    Models: C102, CF102
  • Pressure Reducing & Check Size(s): 1 1/2 to 12 in. (40 to 300 mm)
    Manufactured by: Flomatic Corporation
    Models: C103, CF103
  • Pressure Reducing, Back Pressure Size(s): 1 1/2 to 12 in. (40 to 300 mm)
    Manufactured by: Flomatic Corporation
    Models: C104, CF104
  • Pressure Reducing & Back Pressure & Check Size(s): 1 1/2 to 12 in. (40 to 300 mm)
    Manufactured by: Flomatic Corporation
    Models: C104C, CF104C
  • Pressure Reducing and Back Pressure with N. C. Solenoid
    Manufactured by: Flomatic Corporation
    Models: C104S, CF104S
  • Pressure Reducing with N. C. Solenoid Size(s): 1 1/2 to 12 in. (40 to 300 mm)
    Manufactured by: Flomatic Corporation
    Models: C106, CF106
  • Pressure Reducing with Open Wide Control Size(s): 1 1/2 to 12 in. (40 to 300 mm)
    Manufactured by: Flomatic Corporation
    Models: C108, CF108
  • DIRECT ACTING PUMP CONTROL/REGULATOR VALVE- Model C150E when properly installed will regulate high upstream (inlet pressure) to a lower regulated downstream (outlet pressure) constant pressure within a range regardless ofwater flow. This is accomplished by an adjustable spring loaded balancing valve factory set to automatically regulate the downstream pressure. Temp Max: 180°F (80C) Pressure Max: 400 PSI Factory set at 50 PSI ASSEŽ Listed 1003, IAPMOŽ listed Certified for City of Los Angeles Size(s): 1/2 to 2 in. (15 to 50 mm)
    Manufactured by: Flomatic Corporation
    Model: C150E
  • HIGH FLOW PRESSURE VALVE- Model C150EHF when properly installed will regulate high upstream (inlet pressure) to a lower regulated downstream (outlet pressure) constant pressure within a range regardless of water flow. This is accomplished by an adjustable spring loaded balancing valve factory set to automatically regulate the downstream pressure. Temp Max: 180°F (80C) Pressure Max: 400 PSI Factory set at 50 PSI Size(s): 1 1/4 in. (25 mm)
    Manufactured by: Flomatic Corporation
    Model: C150EHF

Altitude Control Valves

  • MODULATING ALTITUDE VALVE- Single acting. Same construction as Model C000/CF000. Level control with modulation for final filling of storage tanks. CONSULT FACTORY for control valve price list for specific options. Size(s): 1 1/2 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C201, CF201
  • NON-MODULATING ALTITUDE VALVE - Single Acting. Same construction as Model C000/CF000. Level control of storage tanks, reservoirs, and basins. CONSULT FACTORY for control valve price list for specific options. Size(s): 1 1/2 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C205, CF205

Back Pressure Sustaining Valves

  • BACK PRESSURE SUSTAINING VALVE - Same construction as Model C000/CF000. Sustains a minimum upstream pressure to prevent overdrafting the supply. CONSULT FACTORY for control valve price list for specific options.Size(s): 1 1/2 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C301, CF301
  • DIRECT ACTING PUMP CONTROL/REGULATOR VALVE- Model C155E when properly installed will regulate high upstream (inlet pressure) to a lower regulated downstream (outlet pressure) constant pressure within a range regardless ofwater flow. This is accomplished by an adjustable spring loaded balancing valve factory set to automatically regulate the downstream pressure. Temp Max: 180°F (80C) Pressure Max: 400 PSI Factory set at 30 PSI Size(s): 1 to 1-1/4 in. (25 to 32 mm)
    Manufactured by: Flomatic Corporation
    Model: C155E

Pressure Relief Valves

  • PRESSURE RELIEF VALVE - Same construction as Model C000/CF000. Protects against excessive pressures. CONSULT FACTORY for control valve price list for specific options. Size(s): 1 1/2 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C401, CF401

Surge Arrestor, Anticipator Valves

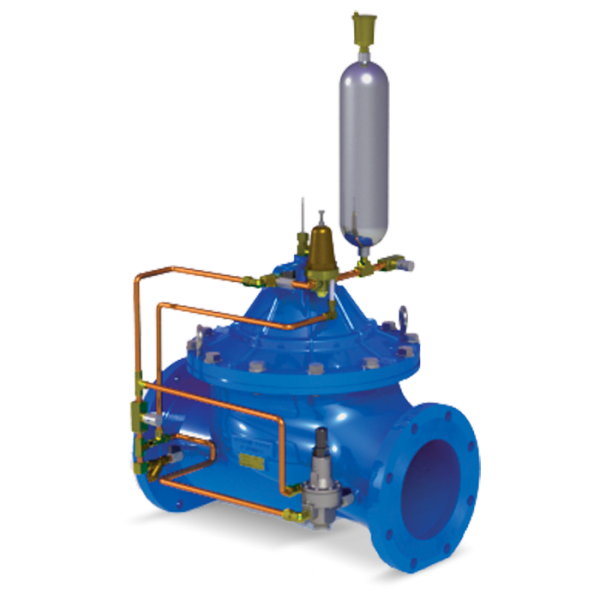

  • SURGE ARRESTOR VALVE - Same construction as Model C000/CF000. Provides relief protection against pressure surges during pump start up, shut down, or power failure. CONSULT FACTORY for control valve price list for specific options. Size(s): 1 1/2 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C501, CF501

Pump Control Valves

  • PUMP CONTROL VALVE - Same construction as Model C000/CF000. Eliminates pump station pressure surges during start up and shut down. CONSULT FACTORY for control valve price list for specific options. Size(s): 3 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C601, CF601

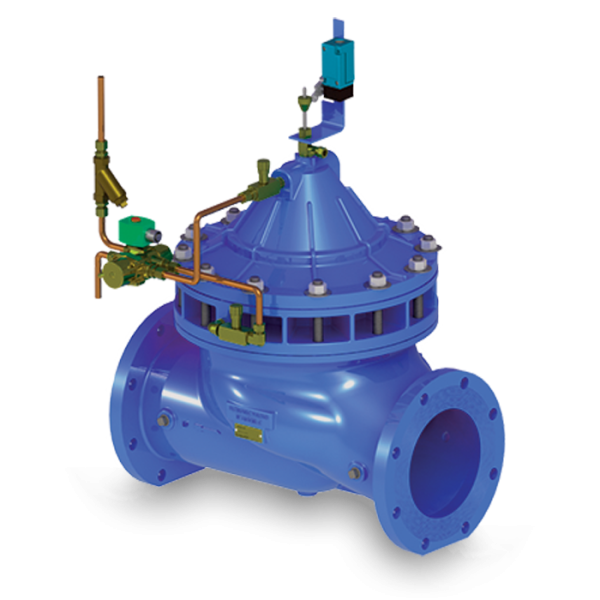

  • C/CF621 Power Chamber - Same construction as Model C000/CF000. Eliminates pump station pressure surges during start up and shut down. CONSULT FACTORY for control valve price list for specific options. Size(s): 3 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C621, CF621

Float Valves

  • PILOT OPERATED FLOAT VALVE - Same construction as Model C000/CF000. For level control of storage tanks, reservoirs, or basins. CONSULT FACTORY for control valve price list for specific options. Size(s): 1 1/4 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C701, CF701
  • PILOT OPERATED FLOAT VALVE- For level control of storage tanks, reservoirs, or basins. CONSULT FACTORY for control valve price list for specific options. Size(s): 1 1/4 to 36 in. (32 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C705, CF705

Solenoid Control Valves

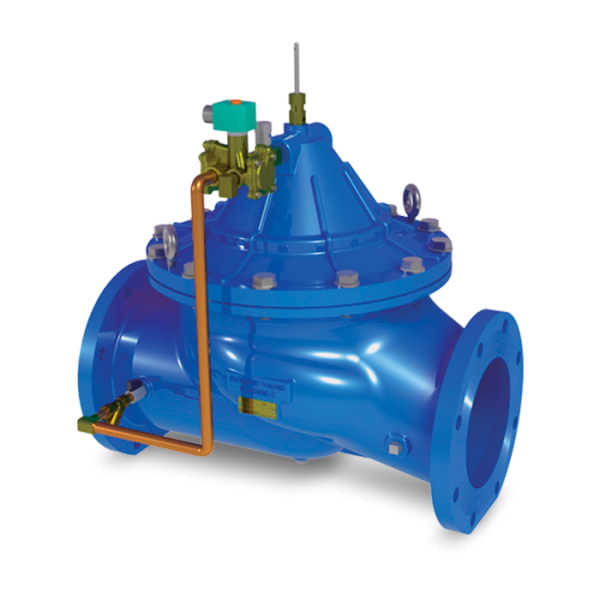

  • SOLENOID CONTROL VALVE - Same construction as Model C000/CF000. Remote actuation for valve position. Specify N.O. (normally open C802); N.C. (normally closed C801). CONSULT FACTORY for control valve price list for specific options. Size(s): 1 1/2 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C801-2, CF801-2

Maximum Rate Flow Control Valves

  • FLOW CONTROL VALVE - Same construction as Model C000/CF000. Maintains a pre-set maximum flow rate regardless of changing line pressures. CONSULT FACTORY for control valve price list for specific options. Size(s): 2 1/2 to 36 in. (50 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C901, CF901

Hydraulic Control Valves

  • HYDRAULIC CHECK VALVE - Same construction as Model C000/CF000. Closes to prevent flow reversal. Adjustable opening & closing speed controls. CONSULT FACTORY for control valve price list for specific options. Size(s): 1 1/4 to 36 in. (40 to 900 mm)
    Manufactured by: Flomatic Corporation
    Models: C1001, CF1001

Cycle Gard Valves

  • DIRECT ACTING PUMP CONTROL VALVE- Reduces rapid pump cycling and maintains a pre-set operating pressure for wells. Threaded female x female connection. Features a low lead alloy body & composite bell housing, Nylon reinforced Buna-N diaphragm and stainless steel screen. Supplied with one FNPT tailpiece and union nuts. Temp Max: 180°F (80C) Pressure Max: 400 PSI Factory set at 50 PSI Size(s): 1/2 to 2 in. (15 to 50 mm)
    Manufactured by: Flomatic Corporation
    Model: CYCLE GARD
    Product ID: I C152E
  • DIRECT ACTING PUMP CONTROL VALVE Reduces rapid pump cycling and maintains a pre-set operating pressure for wells. Threaded female I.D.x male O.D. on inlet and outlet connections. Features a low lead alloy body & composite bell housing, Nylon reinforced Buna-N diaphragm. Temp Max: 180°F (80C) Pressure Max: 400 PSI Factory set at 50 PSI Size(s): 1/2 to 1 in. (15 to 25 mm)
    Manufactured by: Flomatic Corporation
    Model: CYCLE GARD
    Product ID: I C152ET
  • HIGH FLOW DIRECT ACTING PUMP CONTROL REGULATOR VALVE- Model C152EHF reduces rapid pump cycle with field adjustable by-pass and maintains a pre-set operating downstream pressure for wells. Threaded female x female NPT connection with hex end OD. Features a low lead alloy body and cover. Nylon reinforced Buna-N diaphragm. Ideal for flows up to 70 GPM. Temp Max: 180°F (80C) Pressure Max: 400 PSI Factory set at 50 PSI Size(s): 1 1/4 (32 mm)
    Manufactured by: Flomatic Corporation
    Model: CYCLE GARD HY-FLOW
    Product ID: C152EHF
  • PUMP CONTROL/REGULATOR VALVE- Reduces rapid pump cycling and maintains a pre-set operating pressure. CONSULT FACTORY or control valve price list for specific options. Size(s): 1-1/4 to 8 in.
    Manufactured by: Flomatic Corporation
    Model: CYCLE GARD II
  • DIRECT ACTING PUMP CONTROL VALVE WITH TAPPINGS- Reduces rapid pump cycling and maintains a pre-set operating pressure for wells. Threaded female x female connection. Features a low lead alloy body & composite bell housing, Nylon reinforced Buna-N diaphragm and stainless steel screen. Supplied with one FNPT tailpiece and union nuts. Temp Max: 180°F (80C) Pressure Max: 400 PSI Factory set at 50 PSI Size(s): 1 in. (25 mm)
    Manufactured by: Flomatic Corporation
    Model: CYCLE GARD IV
    Product ID: CB152E
  • PUMP CONTROL VALVE- Reduces rapid pump cycling with field adjustable by-pass and maintains a pre-set operating downstream pressure. Ideal for irrigation, water well, and agriculture applications. CONSULT FACTORY or control valve price list for specific options. Size(s): 1/2 to 8 in. (15 to 200 mm)
    Manufactured by: Flomatic Corporation
    Model: CYCLE GARD CI
    Product ID: CIN101
  • PUMP CONTROL VALVE-Reduces rapid pump cycle with field adjustable by-pass and maintains a pre-set operating downstream pressure for wells. CONSULT FACTORY or control valve price list for specific options. Temp Max: 180°F (80C) Pressure Max: 250 PSI Size(s): 1 1/4 to 12 in. (32 to 300 mm)
    Manufactured by: Flomatic Corporation
    Model: CYCLE GARD
    Product ID: CNA101A
  • COMPACT PUMP PRESSURE VALVE- Reduces rapid pump cycling and maintains a pre-set operating pressure for wells. Threaded female I.D.x male O.D. on inlet and outlet connections. Features a low lead alloy body & cover, Nylon reinforced Buna-N diaphragm. 1" NTP Female connection x 11/4" male NPT. Temp Max: 180°F (80C) Max Flow 25 GPM Pressure Max: 400 PSI Factory Set at 60 PSI Outlet (100 psi Inlet) Size(s): 1 in. (25 mm)
    Manufactured by: Flomatic Corporation
    Model: HYDROSTAT
    Product ID: C3100E
  • BOOSTER-ITŽ WATER SYSTEM PUMP CONTROL VALVE- Designed for well water pumping systems, booster systems, and pump irrigation pumping systems. Valve body is cast from an unleaded bronze alloy with two 1/4" tapped holes on tank side for pressure switch and gauge. Temp Max: 180°F (80C) Pressure Max: 175 PSI Size(s): 3/4 to 2 in. (20 to 50 mm)
    Manufactured by: Flomatic Corporation
    Model: BOOSTER-IT
    Product ID: C154
  • PUMP CONTROL VALVE- Reduces rapid pump cycle maintains a pre-set operating downstream pressure. Ideal for irrigation, water well, and agriculture applications. Built in by-pass at 5 GPM. Size(s): 1 1/2 to 2 in.
    Manufactured by: Flomatic Corporation
    Model: CYCLE GARD CI2
    Product ID: CIN101-2
  • Temp Max: 90°F Pressure Max: 150 PSI Factory set at 50 PSI For 40 PSI add A to end of part number or 60 PSI add B Reduces rapid pump cycling and maintains a preset system operating pressure independent from low or high flow conditions. Valve body is all 316 stainless steel female NPT connection. Supports a hanging load up to 3,400 lbs. and fits in 4" well casing. Flow rates for 1-25 GPM. Size(s): 1 to 1 1/4 in.
    Manufactured by: Flomatic Corporation
    Model: CYCLE GARD
    Product ID: C153

Automatic Control Valve Accessories

  • Temp Max: 90°F Pressure Max: 150 PSI Factory set at 50 PSI For 40 PSI add A to end of part number or 60 PSI add B Pressure Reducing Pilot in Unleaded Bronze- Enables Automatic Control Valves to reduce inlet pressure to a preset outlet pressure and maintain it no matter what fluctuations in flow occur. Temp Max: 180° F (80C) Pressure Max: 400 PSI Size(s): 3/8 in. (10 mm)
    Manufactured by: Flomatic Corporation
    Product ID: PRP
  • Pressure Reducing Pilot in Stainless Steel- Enables Automatic Control Valves to sustain a preset inlet pressure no matter what fluctuations occur. Also enables control valve to relieve pressure upon reaching a preset inlet pressure. Temp Max: 180° F (80C) Pressure Max: 400 PSI Size(s): 3/8 in. (10 mm)
    Manufactured by: Flomatic Corporation
    Product ID: BPP
  • Accelerator Pilot in Unleaded Bronze - It is used in systems to control flow by applying an independent pressure to the diaphragm. Enables automatic control valves to rapidly vent water from control diaphragm, thus allowing quicker main valve opening. Temp Max: 180° F (80C) Pressure Max: 300 PSI Size(s): 1/2 in. (15 mm) Pressure Max: 400 PSI Size(s): 3/8 in. (10 mm)
    Manufactured by: Flomatic Corporation
    Model: 165
    Product ID: ACP

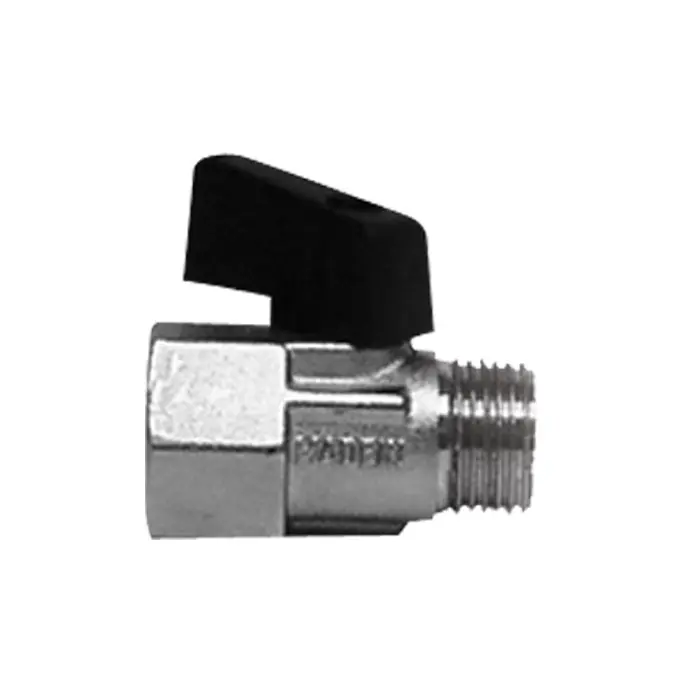

  • Mini ball valves are a quater turn full ported on off isolation valves used on external control valve pilot controls. Size(s): 1/4 to 3/8 in. (8 to 10 mm)
    Manufactured by: Flomatic Corporation
    Product ID: MINI BALL VALVE

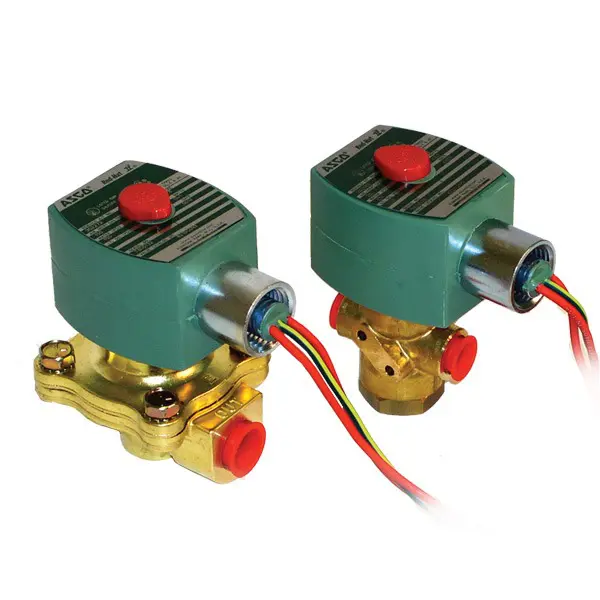

  • For on off control used to alternatly apply pressure to and exhaust pressure from the main valve body cover. Valves are specified either valve body cove. Valves are 3 way 120V and are specified either normally open or closed. Size(s): 1/4 in. (8 mm)
    Manufactured by: Flomatic Corporation
    Product ID: SOLENOID VALVE

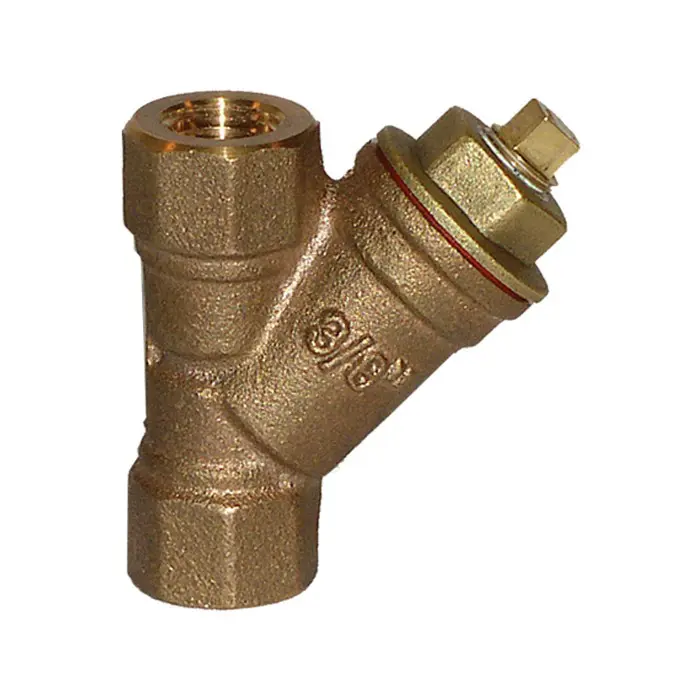

  • Unleaded Bronze body, 20 mesh stainless steel strainer. Furnished with clean out plug. Size(s): 1/4 to 3/8 in. (8 to 10 mm)
    Manufactured by: Flomatic Corporation
    Product ID: Y STRAINER
  • All 316SS body with Delrin poppet and Buna-N seal. Threaded female x female connection. Temp Max: 180 F (82 C) Pressure Max: 400 PSI
    Manufactured by: Flomatic Corporation
    Product ID: CV80SS
  • FLOW CONTROL- Adjustable restrictor that has free flow in the direction of the arrow on the body and operates as a needle valve in the reverse direction. Size(s): 3/8 in. (10 mm)
    Manufactured by: Flomatic Corporation
    Product ID: FC4
  • All 316SS body with Delrin poppet and Buna-N seal. Threaded female x female connection. Size(s): 3/8 to 1/2 in. (10 to 15 mm)
    Manufactured by: Flomatic Corporation
    Product ID: CV80S6
  • 2.5 inch dial, 1/4" MPT bottom connection. 1.5% accuracy Full Scale. 304SS case liquid glycoucer filled bronze tube & connection. Size(s): 2 1/2 in.
    Manufactured by: Flomatic Corporation
    Product ID: Pressure Gauges
  • 316SS 1/4 turn ball valve - Full port, FNPT connection, 2 bolt mounting pad, SS locking handle. Size(s): 1/4
    Manufactured by: Flomatic Corporation
    Model: Ball Valve
    Product ID: 316SS

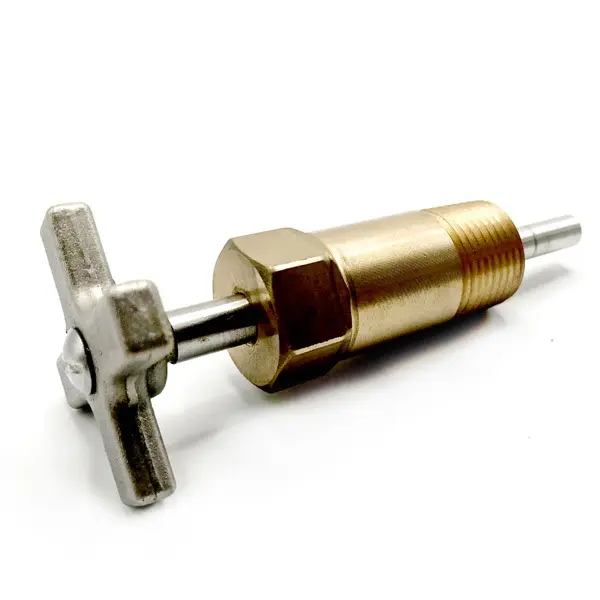

  • A manual operating device used to restrict the flow on a control valve. It will allow user to mount on the top cover to limit the travel distance of the stem on a control valve. Size(s): For 2" valve
    Manufactured by: Flomatic Corporation
    Model:
    Product ID: Flow Limiter
